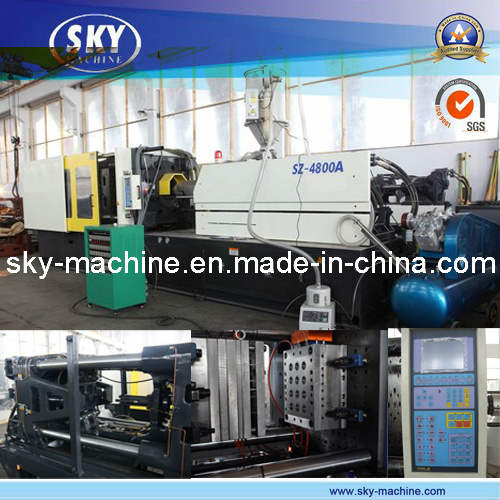

480ton Injection Molding Machine

480ton Injection Molding Machine
Price: US $ 55000-58000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: SZ-4800A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 4800kn
Type: Preform Injection
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic

Product Description

480TON Injection Molding Machine

Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).

Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item Unit Data
Max. clamping force KN 4800
Max. opening distance mm 770
Space between tie bars(V×H) mm 760×760
Mold height(min-max) mm 280-790
Max. daylight mm 1560
Ejector force KN 113.4
Ejector stroke mm 195
Ejector quantity   13
Screw diameter mm 70 75 80
Screw L/D ratio L/D 22.6 21 19.7
Theoretical shot volume cm3 1346 1545 1758
Plasticizing weight(PS) g 1225 1406 1600
Injection pressure Mpa 201 175 154
Theoretical injection rate(PS) g 370 423 484
Plasticizing capacity(PS) g/s    60.4  71.4      83.7
Screw torque N.m 3490
Max. screw rotate speed r/min 150
Injection stroke mm 350
Carriage push force KN 120.6
Pump motor power KW 45
Pump pressure Mpa 16
Heating power KW 28
Heating zone   5
Size(L×W×H) m 7.5×2.1×2.45
Net weight t 20
International designation   4800-2710
